SAXS/WAXS System Facility

Welcome to SAXS/WAXS System at IISER Mohali. This system will enable frontier research in the area of material science, in particular, in the determination of structural parameters/features of particle systems in terms of averaged particle sizes or shape etc. The facility is located in the ground floor of the informatics center.

The fully automated Xeuss SAXS/WAXS System (Model C HP100 fm) consists of following features:

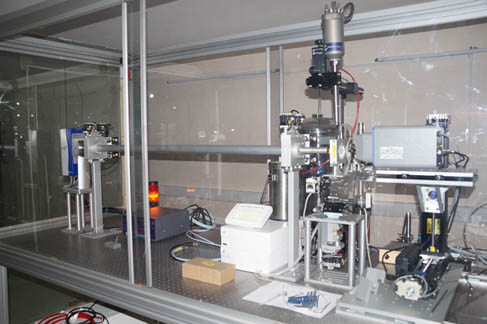

WAXS Mode of Operation

X-ray Source

Micro-focus sealed tube with Cu anode
X-ray tube power 30 W/30 µm
Flux density at sample > 1.2 X 108 photons/s, pure Cu Kα radiation

X-ray Optics

Multilayer single reflection optics suitable for high flux with 2D collimation for Cu

Sample Stages

Motorized XZ stage
GI-SAXS stage

Sample Holders

Liquid/solid Samples (multi-capillary holder)
Thin films

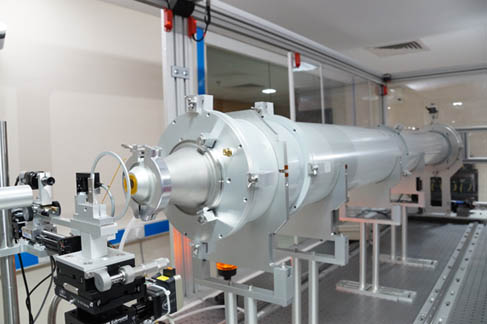

SAXS Mode of Operation

Diffracted beam path

Multi segment vacuum tube in <1mbar operation condition for SAXS/WAXS measurements

Detector

Latest 2D array Pilatus 200 hybrid pixel detector from Dectris mounted on motorized rails
Large active area up to 84 X 70 mm2 with high resolution

Primary Beam Stop

Motorized beam stop fixed with X-ray transparent wires with external Z and X adjustments

Temperature Control Units

LinkHam Hot stage (-50 to 200 °C)
Oxford Cryosystem (-173 to 300 °C)

Rates for SAXS/WAXS measurements

1. Internal users: Rs. 500/sample

2. External academic users: Rs. 1500/sample + GST (as applicable)

3. External non-academic users: Rs. 3000/sample + GST (as applicable)

Mode of Payment: Via cheque/crossed DD in favour of Registrar, IISER Mohali

Sample submission form: |doc format| |pdf format|

Samples submitted to this facility for recording SAXS/WAXS data are the property of the investigator. All data collected by the facility directly relevant to the samples are released to the principal investigator upon completion. The SAXS/WAXS Facility at IISER Mohali should be acknowledged in all publications

For more information or sample submission, please contact any one of the following faculties:

Dr. Santanu K. Pal (Convener, SAXS/WAXS facility)
Associate Professor (Chemical Sciences)
Indian Institute of Science Education and Research, Mohali
Knowledge city, Sector 81, SAS Nagar,
Manauli PO 140306
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
Office Phone No: 0172-2293187

Dr. Angshuman Roy Choudhury
Assistant Professor (Chemical Sciences)
Indian Institute of Science Education and Research, Mohali
Knowledge city, Sector 81, SAS Nagar,
Manauli PO 140306
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.

Dr. Yogesh Singh
Associate Professor (Physical Sciences)
Indian Institute of Science Education and Research, Mohali
Knowledge city, Sector 81, SAS Nagar,
Manauli PO 140306
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.

Dr. Goutam Sheet
Assistant Professor (Physical Sciences)
Indian Institute of Science Education and Research, Mohali
Knowledge city, Sector 81, SAS Nagar,
Manauli PO 140306
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
